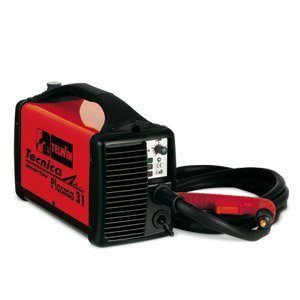

TECNICA PLASMA 31 230V code 815014

Inverter, compressed air plasma cutting system, with contact striking of pilot arc. Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc. Characteristics: reduced weight and dimensions * warning led for torch under voltage, protections *torch automatic cooling * visualization of air pressure * thermostatic, overvoltage, undervoltage, overcurrent protections. Complete with torch.

Technical data

Code 815014

Mains voltage 230V 50/60Hz 1 phase

Current range 5 – 25A

Max. current (40°C)(EN60974-1) 25A 20%

Max. no load voltage 430V

Max current 19 A

Max absorbed power 2,8 kW

Mains fuse 16 A

Efficiency 80%

Power factor 2610396739

Max cutting thickness 8 mm

Compressed air capacity 100 l/min

Compressed air pressure 5-6 bar

Protection class IP23

Dimensions (L,W,H) 400x150x235 mm

Weight 6,4 Kg
